How Hard Is It To Replace The Injector Harness On A 2003 Caravan

Introduction

Welcome to our comprehensive guide on how to replace the injector harness on a 2003 Caravan. The injector harness plays a crucial role in the proper functioning of the fuel injection system in vehicles. Over time, constant exposure to heat, vibration, and age can cause the wires in the harness to deteriorate or become damaged, leading to a variety of issues with engine performance.

In this article, we will take you step-by-step through the process of replacing the injector harness in your 2003 Caravan. Whether you are a seasoned DIY enthusiast or a novice car owner looking to save on repair costs, this guide will provide you with the knowledge and confidence to tackle this task.

Failing injector harnesses can result in a multitude of symptoms, such as rough idling, misfires, decreased fuel efficiency, and even engine stalling. By replacing the injector harness, you can restore the proper flow and distribution of fuel to your engine, ensuring optimal performance and extending the lifespan of your vehicle.

Before we dive into the procedure, it’s important to gather the necessary tools and materials. Having everything prepared in advance will make the process more efficient and smooth. So let’s take a look at what you’ll need:

Overview of the Injector Harness

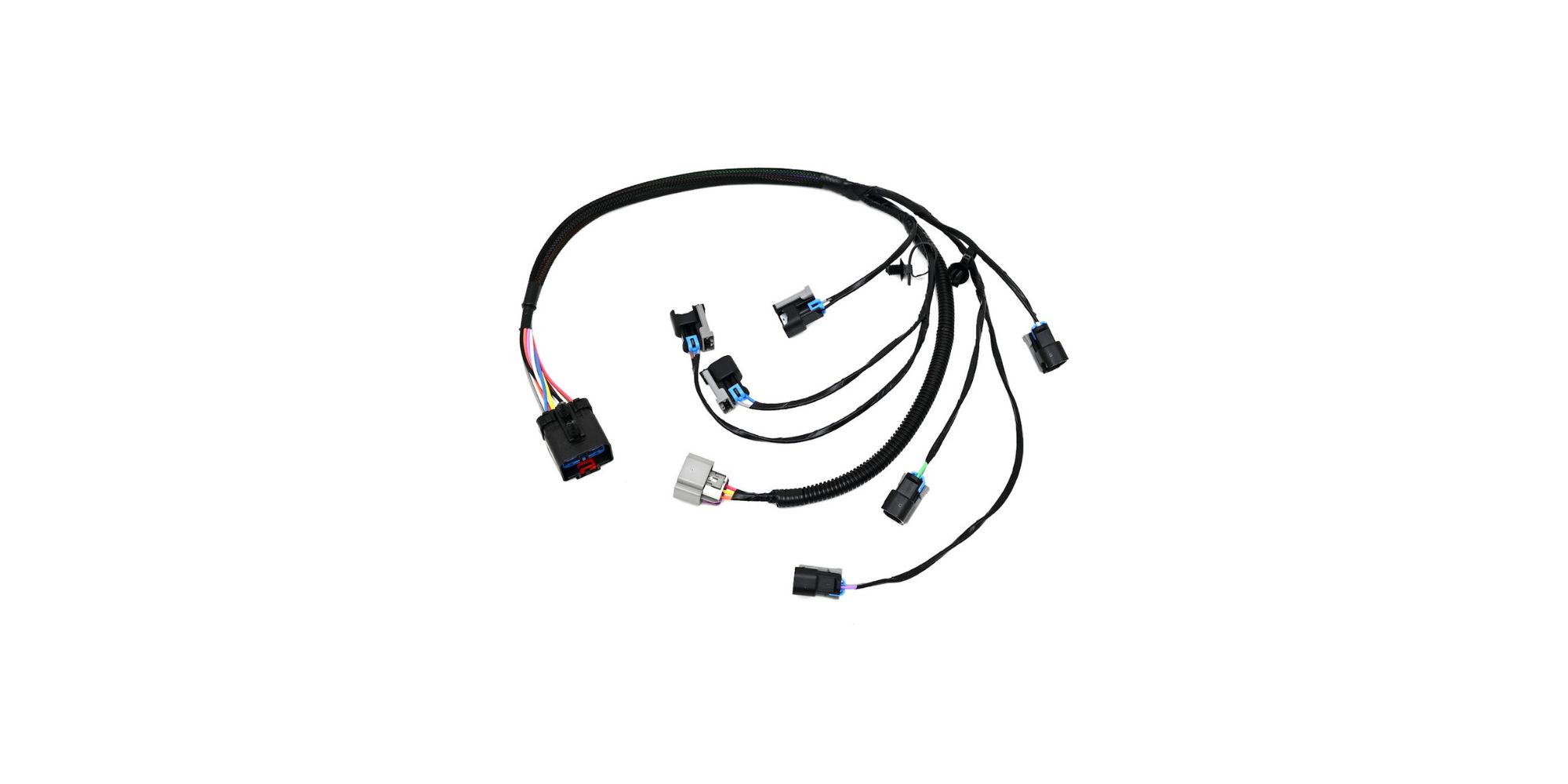

The injector harness is a critical component of the fuel injection system in your 2003 Caravan. It is responsible for delivering the necessary electrical signal to the fuel injectors, which in turn spray the right amount of fuel into the engine cylinders. This precise control over fuel delivery ensures optimal combustion and engine performance.

The harness consists of a bundle of wires that connect to each injector and the main wiring harness of the vehicle. These wires transmit electrical signals from the engine control unit (ECU) to the injectors, controlling the timing and duration of fuel injection. Without a properly functioning injector harness, the fuel injectors may not receive the correct signals, leading to a host of engine problems.

Over time, the injector harness can deteriorate due to various factors, including heat, vibration, exposure to chemicals, and general wear and tear. The insulation on the wires may become brittle, cracked, or damaged, resulting in electrical shorts, poor connectivity, or total failure. Additionally, the connectors and terminals that attach the harness to the injectors and ECU can become corroded or loose, further compromising the electrical connection.

When the injector harness starts to fail, it can lead to a range of symptoms that affect engine performance and efficiency. These symptoms may include rough idling, engine misfires, decreased power output, reduced fuel economy, and even engine stalling. If you notice any of these issues, it’s essential to inspect and replace the injector harness as soon as possible.

Replacing the injector harness is a relatively straightforward process, but it does require some mechanical aptitude and basic tools. By following the steps outlined in this guide, you can save on costly dealership or repair shop fees and restore the proper functionality of your fuel injection system. So, let’s move on to the next section to gather the necessary tools and materials before we start the replacement process.

Symptoms of a Failing Injector Harness

Identifying the symptoms of a failing injector harness is crucial to determine whether it’s time to replace it on your 2003 Caravan. Recognizing these signs early on can help prevent further damage to the engine and ensure optimal performance. Here are some common symptoms to watch out for:

1. Rough Idling: One of the first signs of a failing injector harness is a rough idle. You may notice your engine vibrating or shaking when the vehicle is at a standstill. This is often accompanied by a decrease in engine power and a rough sound coming from the engine.
2. Engine Misfires: If the injector harness is not sending the proper electrical signals to the fuel injectors, it can lead to engine misfires. Misfires occur when one or more cylinders fail to ignite the fuel-air mixture, causing a disruption in engine performance. You may experience a loss of power, hesitation, or jerking during acceleration.
3. Decreased Fuel Efficiency: A failing injector harness can disrupt the optimal fuel-to-air ratio, resulting in decreased fuel efficiency. You may find yourself refueling more frequently or noticing a significant drop in your miles per gallon (MPG).
4. Engine Stalling: In severe cases, a failing injector harness can cause the engine to stall while driving or at idle. This sudden loss of power can be dangerous, especially in traffic or high-speed situations. If your vehicle frequently stalls, it’s essential to have the injector harness inspected and replaced.
5. Check Engine Light: A malfunctioning injector harness can trigger the check engine light to illuminate on your dashboard. This warning light indicates that the engine control unit (ECU) has detected a problem with the fuel injection system. It’s crucial to have the vehicle scanned for trouble codes to pinpoint the exact issue.

If you notice any combination of these symptoms in your 2003 Caravan, it is highly likely that your injector harness requires replacement. It’s important to address these issues promptly to prevent further damage to the engine and ensure optimal performance. In the next section, we will go over the tools and materials you’ll need for the injector harness replacement process.

Tools and Materials Needed

Before you begin replacing the injector harness on your 2003 Caravan, it’s essential to gather all the necessary tools and materials. Having everything prepared in advance will make the task more efficient and prevent any unnecessary delays. Here’s a list of what you’ll need:

• Safety Equipment: Safety should always be a top priority when working on your vehicle. Ensure you have gloves, safety glasses, and a fire extinguisher nearby.
• Socket Set: A set of metric sockets and a ratchet will be needed to remove and install various components.
• Wrench Set: Have a set of wrenches on hand for loosening and tightening bolts and nuts.
• Needle-Nose Pliers: These are useful for accessing and removing small connectors and wires.
• Wire Crimpers: You may need wire crimpers to secure new connectors onto the injector harness.
• Wire Cutters: Wire cutters will come in handy for removing the old harness and trimming wires as needed.
• Electrical Tape: Electrical tape is essential for insulating and protecting the connections made during the replacement process.
• Heat Shrink Tubing: Heat shrink tubing provides a more secure and long-lasting insulation method than electrical tape.
• Clean Cloth or Paper Towels: Keep some clean cloth or paper towels nearby to wipe away any dirt or oil that may come into contact with the wires or connectors.
• Replacement Injector Harness: Purchase a new injector harness that is compatible with your 2003 Caravan. It’s essential to ensure the new harness matches the specifications and connectors of the original.

Having these tools and materials readily available will streamline the replacement process and help you complete the task efficiently and effectively. Once you have everything gathered, you’re ready to move on to the step-by-step procedure for replacing the injector harness, which we will cover in the next section.

Step-by-Step Procedure to Replace the Injector Harness

Replacing the injector harness on your 2003 Caravan requires careful attention to detail and adherence to proper procedures. Follow this step-by-step guide to ensure a successful replacement:

1. Disconnect the Battery: Begin by disconnecting the negative terminal of the battery to eliminate the risk of electrical shock and prevent any accidental activation of the fuel pump.
2. Locate the Injector Harness: Locate the injector harness, which is typically found near the fuel rail and connected to the fuel injectors. You may need to remove any engine covers or components that obstruct access.
3. Inspect and Remove the Old Harness: Carefully inspect the old harness for any signs of damage or wear. Disconnect each connector from the injectors and the main wiring harness, taking note of their positions and orientation. Use wire cutters or a small flathead screwdriver to release any retaining clips or fasteners holding the harness in place.
4. Prepare the New Harness: Take the new injector harness and compare it with the old one to ensure they match in terms of length, connectors, and wiring. If necessary, transfer any additional components, such as retaining clips or heat shields, from the old harness to the new one.
5. Install the New Harness: Begin by connecting the new harness to each fuel injector and the main wiring harness, ensuring the connectors are properly aligned. Use wire crimpers to secure the connectors in place. Be gentle while handling the harness to avoid damaging the delicate wires or connectors.
6. Secure the Harness: Secure the new injector harness in its designated position, reattaching any retaining clips or fasteners that were removed in the previous steps. Ensure that the harness is properly routed and away from any hot or moving components.
7. Reconnect the Battery: Once the new harness is securely installed, reconnect the negative terminal of the battery. This will restore power to the vehicle, allowing you to start the engine and test the functionality of the new injector harness.
8. Test the Fuel Injection System: Start the engine and monitor its performance. Check for any signs of rough idling, engine misfires, or fuel delivery issues. If everything appears to be functioning correctly, you have successfully replaced the injector harness.

It’s important to consult the specific repair manual for your 2003 Caravan and follow any additional instructions or precautions provided. By following these steps, you can effectively replace the injector harness and restore the proper functioning of your fuel injection system. In the next section, we will discuss the importance of testing the new injector harness after installation.

Testing the New Injector Harness

After replacing the injector harness on your 2003 Caravan, it’s crucial to thoroughly test its functionality to ensure proper operation of the fuel injection system. Here are the steps to effectively test the new injector harness:

1. Visual Inspection: Begin by visually inspecting the connections and wiring of the new injector harness. Look for any loose or improperly connected connectors, damaged wires, or signs of moisture or corrosion. Rectify any issues found before proceeding.
2. Check for Error Codes: Connect an OBD-II scanner or code reader to your vehicle’s diagnostic port. Scan for any error codes related to the fuel injection system. If any codes appear, diagnose and address them before continuing.
3. Start the Engine: Start the engine and allow it to run for a few minutes. Pay attention to the idle quality, smoothness, and sound. A properly functioning harness should result in a stable idle with no roughness, surges, or misfires.
4. Accelerate and Observe: While the engine is idling, gently press the accelerator pedal and observe the engine’s response. It should rev smoothly without any hesitation, stalling, or hiccups. Test this multiple times to verify consistent performance.
5. Monitor Fuel Efficiency: Keep an eye on your vehicle’s fuel efficiency over several days of driving. If the new injector harness is functioning correctly, you should notice improved fuel economy and stable performance.
6. Check for Leaks: Inspect the area around the fuel injectors and connectors for any signs of fuel leaks. Leaks can indicate a faulty connection or damaged seal. If a leak is detected, address it immediately.
7. Confirm Check Engine Light: Check the dashboard for the presence of the check engine light. It should not be illuminated if the new injector harness is operating correctly. If the light persists, use the OBD-II scanner to identify any pending codes.

It’s important to conduct these tests in a safe environment, away from busy roadways, to thoroughly assess the performance of the new injector harness. If any issues or abnormalities are encountered during testing, it may indicate a problem with the installation or an underlying issue with the fuel injection system. In such cases, it is recommended to seek professional assistance to diagnose and address the problem.

By conducting these tests, you can ensure that the new injector harness is functioning correctly and that your 2003 Caravan is operating at its optimal performance level. In the final section, we will provide some valuable tips and precautions to keep in mind throughout the entire replacement process.

Tips and Precautions

When replacing the injector harness on a 2003 Caravan, it’s essential to follow these tips and precautions to ensure a safe and successful replacement process:

• Refer to the Service Manual: Always consult the official service manual for your specific vehicle make and model. The manual will provide detailed instructions and guidance specific to your vehicle, ensuring a proper replacement process.
• Disconnect the Battery: Prior to starting any work, make sure to disconnect the negative terminal of the battery to prevent electrical shocks and avoid any accidental activation of the fuel pump.
• Take Photos or Label Connectors: Before removing the old injector harness, take photos or label the connectors to ensure proper reinstallation of the new harness. This will prevent any confusion or mistakes during the replacement process.
• Handle Wires with Care: The wires in the injector harness are delicate and sensitive. Handle them with care to avoid breaking or damaging them during installation. Avoid pulling or tugging on the wires excessively.
• Secure Connections Properly: When connecting the new harness to the fuel injectors and the main wiring harness, ensure that the connections are secure. Loose or improperly connected connectors can lead to poor electrical connections and potential problems down the line.
• Inspect for Damage: Before installing the new harness, inspect it carefully for any signs of damage or defects. Replace the harness if any issues are found, as using a faulty harness can cause ongoing issues with the fuel injection system.
• Test for Proper Fitment: Verify that the new harness fits properly and follows the same routing path as the old one. Avoid pinching or trapping the harness between any engine components, as this can lead to damage or electrical shorts.
• Secure and Protect the Harness: Once the new harness is installed, ensure that it is secured using the appropriate retaining clips or fasteners. Additionally, use electrical tape or heat shrink tubing to insulate and protect the connector terminals from moisture, dirt, and other contaminants.
• Double-Check Connections: After replacing the harness, double-check all connections to ensure they are properly seated and locked in place. A loose or faulty connection can result in poor electrical contact and cause issues with the fuel injection system.
• Perform Final Test: Before considering the replacement process complete, perform a final test of the engine to ensure that it is running smoothly and that there are no warning lights or abnormal symptoms. Monitor the vehicle’s performance for a few days after the replacement to verify long-term stability.

By following these tips and taking necessary precautions, you can ensure a safe and successful replacement of the injector harness on your 2003 Caravan. If you encounter any difficulties or are unsure about any step in the process, it is recommended to seek professional assistance to avoid causing further damage to the vehicle.

With the new injector harness installed, your vehicle’s fuel injection system should function optimally, providing improved performance, fuel efficiency, and reliability for smooth and trouble-free driving.

Now that you have completed the replacement process, you can enjoy the peace of mind that comes with a properly functioning fuel injection system in your 2003 Caravan. Remember to keep up with regular maintenance and address any future issues promptly to ensure the continued performance of your vehicle.

Conclusion

Replacing the injector harness on a 2003 Caravan can be a challenging task, but with the proper knowledge, tools, and attention to detail, it is manageable for both seasoned DIY enthusiasts and novice car owners. A failing injector harness can cause a range of issues, including rough idling, misfires, decreased fuel efficiency, and engine stalling. By replacing the harness, you can restore the proper functioning of your fuel injection system and ensure optimal engine performance.

In this comprehensive guide, we have provided you with a step-by-step procedure to replace the injector harness, along with tips and precautions to keep in mind to ensure a successful replacement process. We also highlighted the importance of testing the new harness and inspecting for proper fitment and secure connections.

Remember to consult the official service manual for your specific vehicle and follow all safety procedures, such as disconnecting the battery, wearing appropriate safety gear, and taking necessary precautions while handling wires and connectors. By conducting thorough testing and monitoring the engine’s performance, you can ensure that the new harness is functioning correctly.

By successfully replacing the injector harness, you have taken a proactive step to maintain and improve the performance and efficiency of your 2003 Caravan. Regular maintenance and addressing any issues promptly will help prolong the life of your vehicle and ensure a smooth and enjoyable driving experience.

We hope that this guide has provided you with the necessary information and confidence to tackle the replacement of the injector harness on your 2003 Caravan. Remember, if you ever feel unsure or encounter any difficulties during the process, it’s always best to seek professional assistance.

With a properly functioning injector harness, you can now hit the road with peace of mind, knowing that your 2003 Caravan will deliver the performance and reliability you expect.
